Ozefridge Voyager Series
DC Refrigeration
Custom Designed
Systems
Ozefridge Voyager Series delivers:
Lowest Engery Usage Reliablity & Durability Customer Service
Ozefridge Voyager
The Perfect Offshore Cruising Solution
Built To Handle The Toughest Adventures, It’s Your Trusted Companion For
Keeping Food Fresh And Drinks Cold – Where Ever Your Journey Takes You!
Standard Single Plate Voyager Models One Price $2302 AUD | Standard Twin Plate Voyager Models One Price $3215 AUD

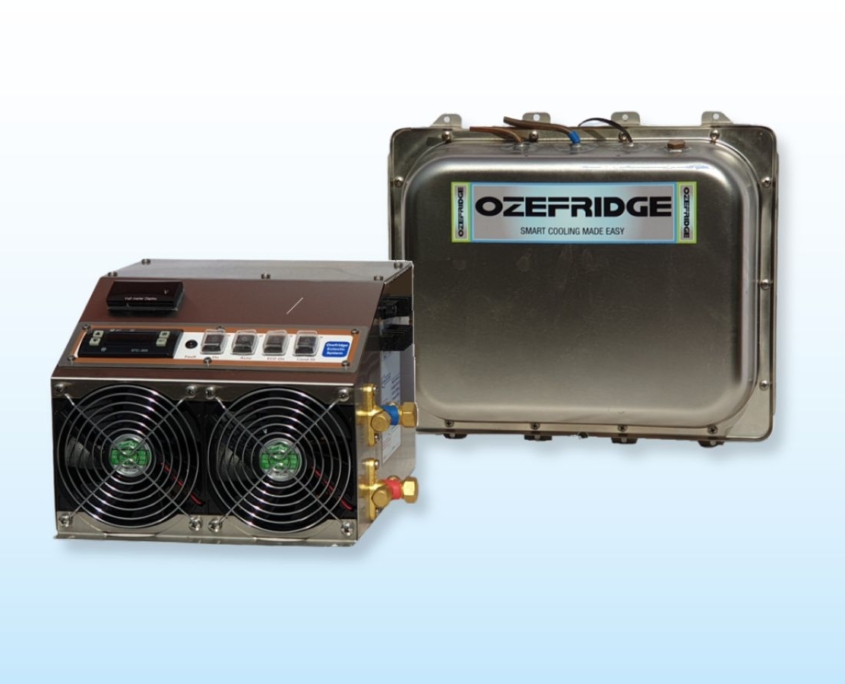

Voyager Compact
Available In 40mm & 60mm (Front to Back) Plate Thickness
- The A490 unit is 280mm deep x 185mm high x 240mm wide. (+ couplings)
- Allow a space minimum of 320mm deep x 200mm high x 350mm wide.
- P33-29-6 plate is 330mm x 290mm x 40mm or 60mm thickness overall.
Suits refrigerator cabinets up to 100 liters.
Approximately 20 amp/hrs per day during summer, much less during cooler months.
Suits freezer cabinets up to 60 liters
Approximately 30 amp/hrs per day during summer, much less during cooler months.
Suits refrigerator cabinets up to 120 liters.
Approximately 25 amp/hrs per day during summer, much less during cooler months.

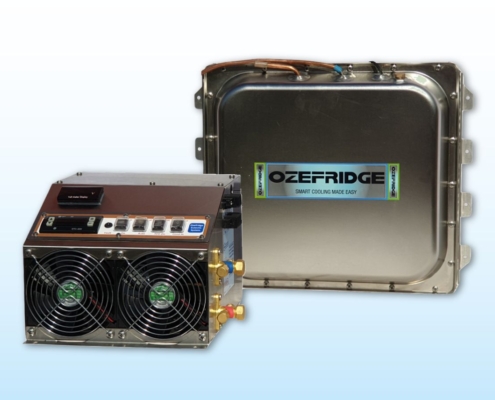

Voyager PRO
Available In 40mm & 60mm (Front to Back) Plate Thickness
- A490 unit is 280mm deep x 185mm high x 240mm wide. (+ couplings)
- Allow a space minimum of 320mm deep x 200mm high x 350mm wide.
- P40-33-6 plate is 400mm x 330mm x 40mm or 60mm thickness overall.
Suits refrigerator cabinets up to 150 liters.
Approximately 30 amp/hrs per day during summer, much less during cooler months.
Suits freezer cabinets up to 120 liters
Approximately 40 amp/hrs per day during summer, much less during cooler months.
Suits refrigerator cabinets up to 160 liters.
Approximately 35 amp/hrs per day during summer, much less during cooler months.
Voyager MAX
Available In 40mm & 60mm (Front to Back) Plate Thickness
- The A490 is particularly suited to this larger eutectic plate.
- A480 unit is 280mm deep x 185mm high x 240mm w. (+ couplings)
- Allow a space minimum of 320mm deep x 200mm high x 350mm.
- P53-35-6 plate is 530mm x 350mm x40mm or 60mm thickness overall.
Suits refrigerator cabinets up to 180 liters.
Approximately 40 amp/hrs per day during summer, much less during cooler months.
Suits freezer cabinets up to 180 liters
Approximately 55 amp/hrs per day during summer, much less during cooler months.
Suits refrigerator cabinets up to 220 liters.
Approximately 40 amp/hrs per day during summer, much less during cooler months.
Most Popular Voyager System
Twin Plates With Thermo Fan Kit
Making A Spill Over System Work Perfectly
Prices subject to receiver’s local taxes, tariffs and import costs etc
All goods dispatched FOB Ex VIC, Australia. (insurance can be purchased for international dispatches).
Compare Ozefridge Voyager Models
All Voyager models come installation-ready, with all required parts.
Voyager Compact
Voyager Pro
Voyager Max
Cooling Capacity
Up to 80L (fridge) / 80L (freezer with twin plates)
Up to 150L (fridge) / 100L (freezer with twin plates)
Up to 180L (fridge) / 250L (freezer with twin plates)
Power Consumption
8–12 amp/hrs per day (cooler months)
10–16 amp/hrs per day (cooler months)
48–57 amp/hrs per day (summer)
Plate Dimensions
330mm x 290mm x 60mm
400mm x 330mm x 60mm
530mm x 350mm x 60mm
Unit Dimensions
280mm x 185mm x 240mm
280mm x 185mm x 240mm
280mm x 185mm x 240mm
Best For
Small spaces and compact setups
Medium spaces and versatile applications
Large spaces and demanding applications
Voyager Compact
Cooling Capacity
Up to 80L (fridge) / 80L (freezer with twin plates)
Power Consumption
8–12 amp/hrs per day (cooler months)
Plate Dimensions
330mm x 290mm x 60mm
Unit Dimensions
280mm x 185mm x 240mm
Best For
Small spaces and compact setups
Voyager Pro
Cooling Capacity
Up to 150L (fridge) / 100L (freezer with twin plates)
Power Consumption
10–16 amp/hrs per day (cooler months)
Plate Dimensions
400mm x 330mm x 60mm
Unit Dimensions
280mm x 185mm x 240mm
Best For
Medium spaces and versatile applications
Voyager Max
Cooling Capacity
Up to 180L (fridge) / 250L (freezer with twin plates)
Power Consumption
48–57 amp/hrs per day (summer)
Plate Dimensions
530mm x 350mm x 60mm
Unit Dimensions
280mm x 185mm x 240mm
Best For
Large spaces and demanding applications
Not sure which model is right for your setup?
Use our free Heat Load Calculator to determine the best suitable option.
Ultra-Low Power Consumption
Ozefridge EutectiCore technology is optimised for off-grid use, consuming up to 50% less than traditional refrigeration.
Fully Customisable Refrigeration
From compact fridges to large freezer setups, our solutions can be fully customised to meet your specific needs.
Peace of Mind
Built In
Proven durability, low power draw & expert support. Ozefridge gives you the confidence to travel further without compromise.
Ozefridge Options
Available Products
Ozefridge Voyager Add-Ons /Options : Ultimate customization will make our Voyager system the most versatile DC refrigeration design .

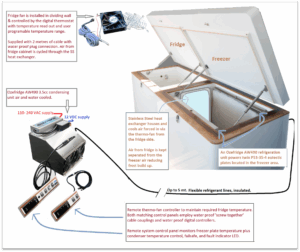

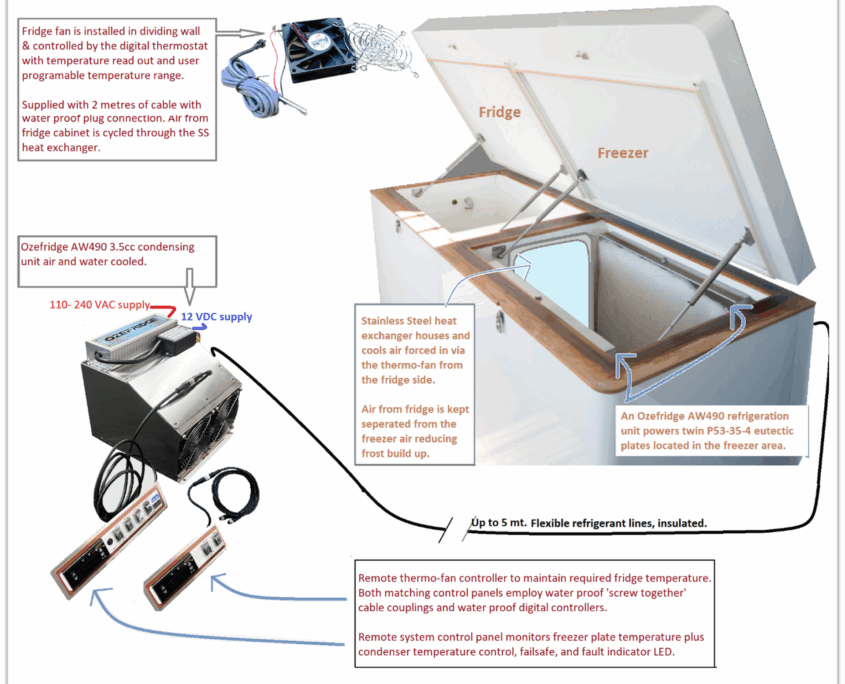

Thermo Fan Kit With Remote:
This kit is used to service the adjacent fridge area of combination cabinets as described above.
With the AW490’s digital controller and twin plates maintaining the freezer section, an 80mm fan is installed between the compartments.
A remotely located digital controller panel (matches the AW490 controller panel) monitors the fridge temperature and powers the fan to cycle cold air from the freezer to the fridge to maintain fridge.
Air is circulated so a second return air duct / passage port is needed.

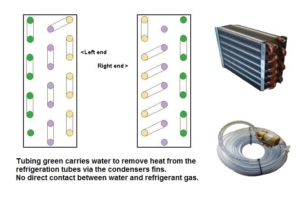

Water Cooled Option
AUD $330
Water Cooled Option
If the refrigeration condensing unit is located near a heat source or ventilation is restricted, the water cooled option is recommended. The water cooling is powered by a 6ltr/min (2.5m max head) Micro Pump which uses less than half an Amp /Hr but reduces system’s power consumption by more than 1 Amp/Hr. Note: The coil used for this option is different from the standard air cool only model. Additional water ports and jackets are incorporated into the coil at the time of manufacturing. This option is available on new order systems and can not be retrofitted into an existing air cool unit after is has been assembled.

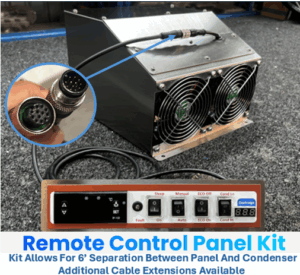

Remote Panel Option:
This allows for the control panel to be located up to a standard cable length distance of 1.8m from the condensing unit. Available additional cable leads can increase the distance in 2m increments. The remote cable is “Solar Panel Grade” featuring water proof plug connections..
The kit includes a blank stainless steel cover.

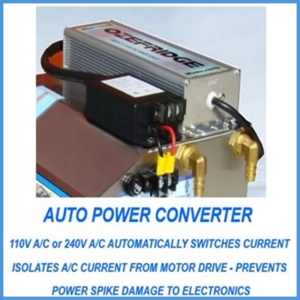

Auto Power Converter:
The converter is pre-coupled to automatically switch to AC power whenever available and reverts back to the 12VDC supply when AC supply discontinues.
Being separate from the Motor Driver Module eliminates the possibility of a ‘dirty or spiked’ AC mains power supply causing damage to the MDM, compressor or other electrical components.
The mains lead is plugged into the mains supply / alternator etc while at the same time the 12VDC remains connected. If the AC mains supply is interrupted in your absence, the system will continue to operate from the 12VDC supply. Low battery cut-out is at 11.3V.
(Condenser Unit Sold Separate) Options Available

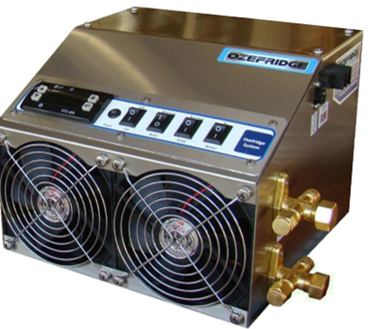

A490 Condensing Unit
Brushless 3.5CC compressor:
Intelligent BE90 soft start Motor Driver Module (MDM)
High/Low voltage, overheating and overload protected
Triple-pass Cupro-Nickel condenser
Twin cooling fans, 140cubic feet per minute max air volume
Solar-panel grade waterproof internal plugs, easy critical parts replacement
ECO Power management, cuts off cycle time to use excess battery power
2x easy access 3way couplings with Schroeder valve service ports
Optional upgrade to AW490 unit (upon order ONLY)
Wide range of additional AC-DC and DC-DC power converters to suit
Fully housed in 304 stainless steel
Detachable/extendable control panel:
Programmable digital controller with dual temperature sensor
6mode fault indicator LED light
Auto mode (temperature actuated) OR Manual mode (on all the time)
ECO on/off switch
Cond Lo (quite run, one fan)
Cond Hi (water cooling pump+2nd fan, temperature actuated)

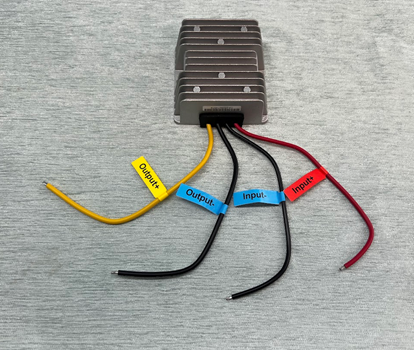

Auto Power Converter:
Output 20amps at 12v D/C.
Used when Ozefridge systems are installed in 24v Equipped Vessels

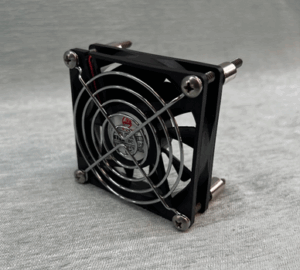

Cabinet Circulation Fan Option:
Circulates cabinet air for maximizing stable temperatures.

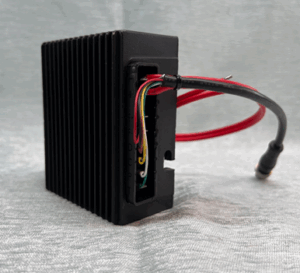

Motor Driver Module (MDM:
(Spare unit included with every international order)
BE90 Soft Start compressor module.

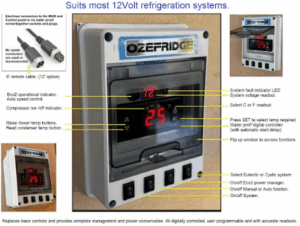

Ozefridge Mate-Upgrade For Existing Sytems:
Retrofits to most 12v refrigeration systems. Replace your tired mechanical thermostat with our digital temperature controller and enjoy the latest features of the Ozefridge systems:
1. Dual temperature for monitoring for both cabinet and condenser.
2. Auto/Manual switch: “Auto” gives control over the digital controller, “Manual” you decide when the compressor starts and stops.
3. ECO Power Management, forces the compressor to run when batteries are fully charged. Has an LED indicator for when it’s active. Can be manually switched off when not required
4. System selector. Whether you have a cold plate or eutectic system, it’s got you covered.
5. Digital Voltmeter
6. LED Fault light (If your compressor has a fault LED feature)
7. Includes an LED rechargeable motion-activated cabinet light.
Temperature Sensor:
NTC temperature sensor with 5m of cable (5k ohm to 50k ohm range)

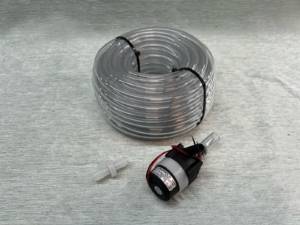

(Included With Water Cool Option)
6.5ltr/minute centrifugal pump, 10m of food grade plastic tubing and no-return valve for water-cooled units ONLY.

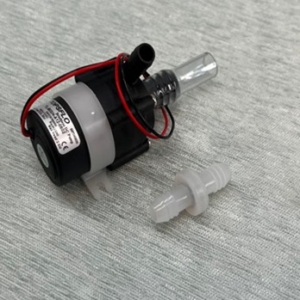

Micro Pump Separate:
Replacement 6.5ltr/minute centrifugal pump only
Find Your Best Fit
