Ozefridge Voyager Add-Ons /Options : Ultimate Customization Will Make Your Voyager System The Most Versatile DC Refrigeration.
Designed Specifically For Your Needs.

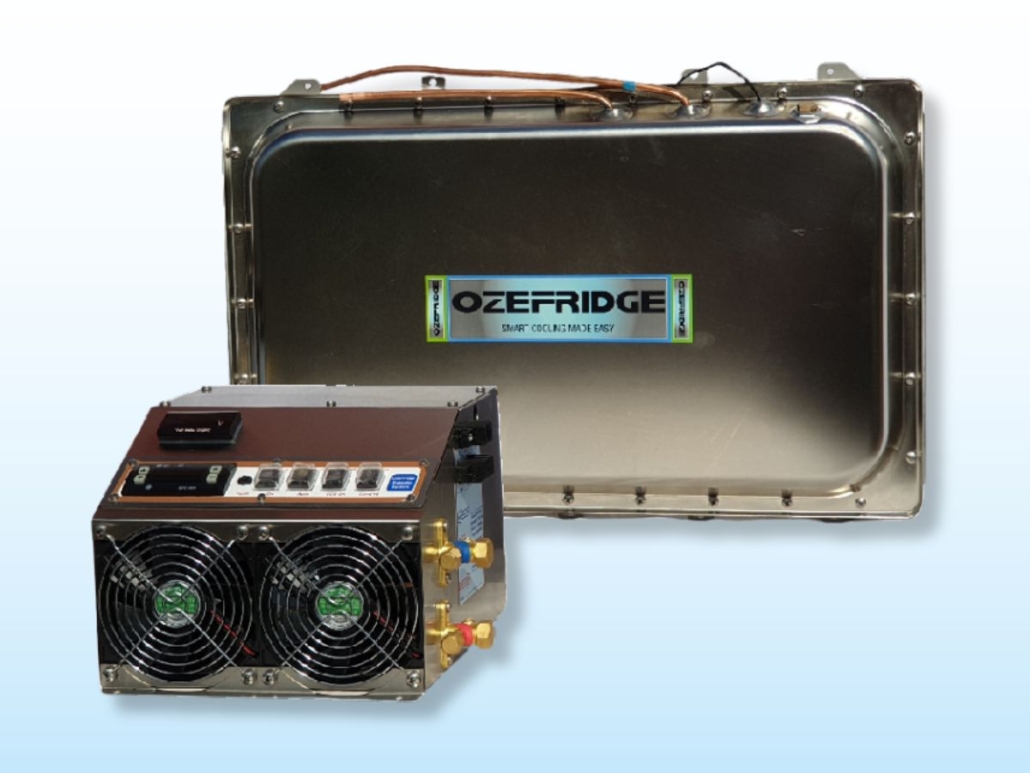

The Ozefridge Voyager Series-Single Plate
Compact- single cold plate suits refrigerator cabinets up to 100 liters.
Extremely low power consumption. Typically, if installed in a 100 liter refrigerator it would consume approximately 20 amp/hrs per day during summer, much less during cooler months.
Pro- single cold plate suits refrigerator cabinets up to 150 liters.
Extremely low power consumption. Typically, if installed in a 150 litre refrigerator it would consume approximately 30 amp/hrs per day during summer, much less during cooler months.
Max-single cold plate suits refrigerator cabinets up to 180 liters.
Most suitable for large cabinets. A 180 litre refrigerator would consume approximately 40 amp/hrs per day during summer, much less during cooler months.
√ A490 Condenser Unit: 280mm Deep x 195mm High x 240mm (plus 40mm for refrigeration couplings)
Minimum required space = 320mm Deep x 200mm High x 350mm Wide
OR
In a 120 litre refrigerator it would consume approximately 25 amp/hrs per day during summer, much less during cooler months.Pro- twin cold plate suits refrigerator cabinets up to 120 liters OR refrigerators up to 160 liters.
Extremely low power consumption. Typically, if installed in a 120 litre freezer, it would consume approximately 40 amp/hrs per day during summer, much less during cooler months.
OR
In a 160 litre refrigerator, it would consume approximately 35 amp/hrs per day during summer, much less during cooler months.Max-twin cold plate suits freezer cabinets up to 180 liters OR refrigerators up to 220 liters.
Most suitable for large cabinets. A 180 litre freezer would consume approximately 55 amp/hrs per day during summer, much less during cooler months.
OR
In a 220 litre refrigerator, would consume approximately 40 amp/hrs per day during summer, much less during cooler months.
Minimum required space = 320mm Deep x 200mm High x 350mm Wide
Water Cooled Option
AUD $330
If the refrigeration condensing unit is located near a heat source or ventilation is restricted, the water cooled option is recommended. The water cooling is powered by a 6ltr/min (2.5m max head) Micro Pump which uses less than half an Amp /Hr but reduces system’s power consumption by more than 1 Amp/Hr. Note: The coil used for this option is different from the standard air cool only model. Additional water ports and jackets are incorporated into the coil at the time of manufacturing. This option is available on new order systems and can not be retrofitted into an existing air cool unit after is has been assembled.
This allows for the control panel to be located up to a standard cable length distance of 1.8m from the condensing unit. Available additional cable leads can increase the distance in 2m increments. The remote cable is “Solar Panel Grade” featuring water proof plug connections..
The kit includes a blank stainless steel cover.
The converter is pre-coupled to automatically switch to AC power whenever available and reverts back to the 12VDC supply when AC supply discontinues.
Being separate from the Motor Driver Module eliminates the possibility of a ‘dirty or spiked’ AC mains power supply causing damage to the MDM, compressor or other electrical components.
The mains lead is plugged into the mains supply / alternator etc while at the same time the 12VDC remains connected. If the AC mains supply is interrupted in your absence, the system will continue to operate from the 12VDC supply. Low battery cut-out is at 11.3V.
This kit is used to service the adjacent fridge area of combination cabinets as described above.
With the AW490’s digital controller and twin plates maintaining the freezer section, an 80mm fan is installed between the compartments.
A remotely located digital controller panel (matches the AW490 controller panel) monitors the fridge temperature and powers the fan to cycle cold air from the freezer to the fridge to maintain fridge.
Air is circulated so a second return air duct / passage port is needed.
(Condenser Unit Sold Separate) Options Available
Motor Driver Module (MDM) (Spare unit included with every international order)
BE90 Soft Start compressor module.
Circulates cabinet air for maximizing stable temperatures.
Retrofits to most 12v refrigeration systems. Replace your tired mechanical thermostat with our digital temperature controller and enjoy the latest features of the Ozefridge systems:
1. Dual temperature for monitoring for both cabinet and condenser.
2. Auto/Manual switch: “Auto” gives control over the digital controller, “Manual” you decide when the compressor starts and stops.
3. ECO Power Management, forces the compressor to run when batteries are fully charged. Has an LED indicator for when it’s active. Can be manually switched off when not required
4. System selector. Whether you have a cold plate or eutectic system, it’s got you covered.
5. Digital Voltmeter
6. LED Fault light (If your compressor has a fault LED feature)
7. Includes an LED rechargeable motion-activated cabinet light.
NTC temperature sensor with 5m of cable (5k ohm to 50k ohm range)
(Included With Water Cool Option)
6.5ltr/minute centrifugal pump, 10m of food grade plastic tubing and no-return valve for water-cooled units ONLY.
Replacement 6.5ltr/minute centrifugal pump only
