Voyager Single Plate System

Voyager Single Plate System

$2,302.00

Choose A Desired Model-COMPACT / PRO / MAX Cold Plate Size:

√ P33-29-6 Compact Cold Plate: 330mm x 290mm x (60mm or 40mm Thickness)

√ P40-33-6 Pro Cold Plate: 400mm x 330mm x (60mm or 40mm Thickness)

√ P53-35-6 Max Cold Plate: 530mm x 350mm x (60mm or 40mm Thickness)



*Vessel Information

Select Cabinet Configuration/Enter Dimensions

1- Enter Cabinet Interior Dimensions
2- Select Type Of Use-Fridge Or Freezer

Interior Cabinet Enter Dimensions

Select Type Of Use For This Cabinet

Select Cold Plate Size And Orientation:

1- Select Cold Plate Size
2- Select Cold Plate Thickness 60mm Or 40mm
3- Select Cold Plate Orientation
4- Line Set Length Needed From Holding Plate to Compressor-Enter Meters

*1- Select Cold Plate Size

*2- Cold Plate Thickness *

Choose between 60mm and 40mm size. Note: The 60mm Plates Have Greater Interior Volume With Longer Hold Time.

* 3- Select Cold Plate Orientation

Select Plate Configuration from 4 Options Below:

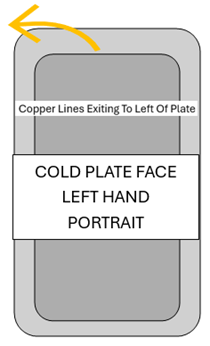

PLATE IS TO BE MOUNTED WITH LENGTH TOP TO BOTTOM with LEFT HAND BOX EXIT POINT

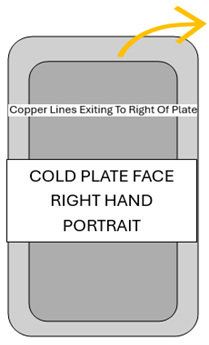

PLATE IS TO BE MOUNTED WITH LENGTH TOP TO BOTTOM with RIGHT HAND BOX EXIT POINT

PLATE IS TO BE MOUNTED WITH LENGTH SIDE TO SIDE with LEFT HAND BOX EXIT POINT

PLATE IS TO BE MOUNTED WITH LENGTH SIDE TO SIDE with RIGHT HAND BOX EXIT POINT

* 4-Line Set Length Needed From Holding Plate to Compressor-Enter Meters'

Length in Meters

Ozefidge System Build Options

Optional Fresh Water Cooling

This option is only available at time of original order and can not be added to an existing system. The interior coil has additional ports/jackets for water cooling.

Optional Remote (Control Panel)

Remote Panel Cable Length

Length of cable in meters

Ozefidge System Power Options

*Select 12V or 24v System

Ozefrige systems use 12v DC input. If you have a 24v system there is an available step down converter.

Optional Ozefridge A/C Power Converter

Allows your OzeFridge unit to run on AC Power as well as the standard 12v DC Power

* Choose Payment Method:

No Extra Fees, Use the reciept transfer portal to uplaod a bank transfer receipt in reference to your order number

2.0% Added Processing Fee For Australian Issued Credit Cards

3.5% Added Processing Fee For International Credit Cards

International and Domestic Shipment Insurance

Shipping Insurance Is Highly Recommended

Product price: $2,302.00
Total options:
Order total:
Category:

Description

The Ozefridge Voyager Series-Single Plate

Compact- single cold plate suits refrigerator cabinets up to 100 liters.
Extremely low power consumption. Typically, if installed in a 100 liter refrigerator it would consume approximately 20 amp/hrs per day during summer, much less during cooler months.

Pro- single cold plate suits refrigerator cabinets up to 150 liters.
Extremely low power consumption. Typically, if installed in a 150 litre refrigerator it would consume approximately 30 amp/hrs per day during summer, much less during cooler months.

Max-single cold plate suits refrigerator cabinets up to 180 liters.
Most suitable for large cabinets. A 180 litre refrigerator would consume approximately 40 amp/hrs per day during summer, much less during cooler months.

√ A490 Condenser Unit: 280mm Deep x 195mm High x 240mm (plus 40mm for refrigeration couplings)
Minimum required space = 320mm Deep x 200mm High x 350mm Wide

Additional information

Weight 19 kg
Dimensions 57 × 42 × 40 cm
