Description

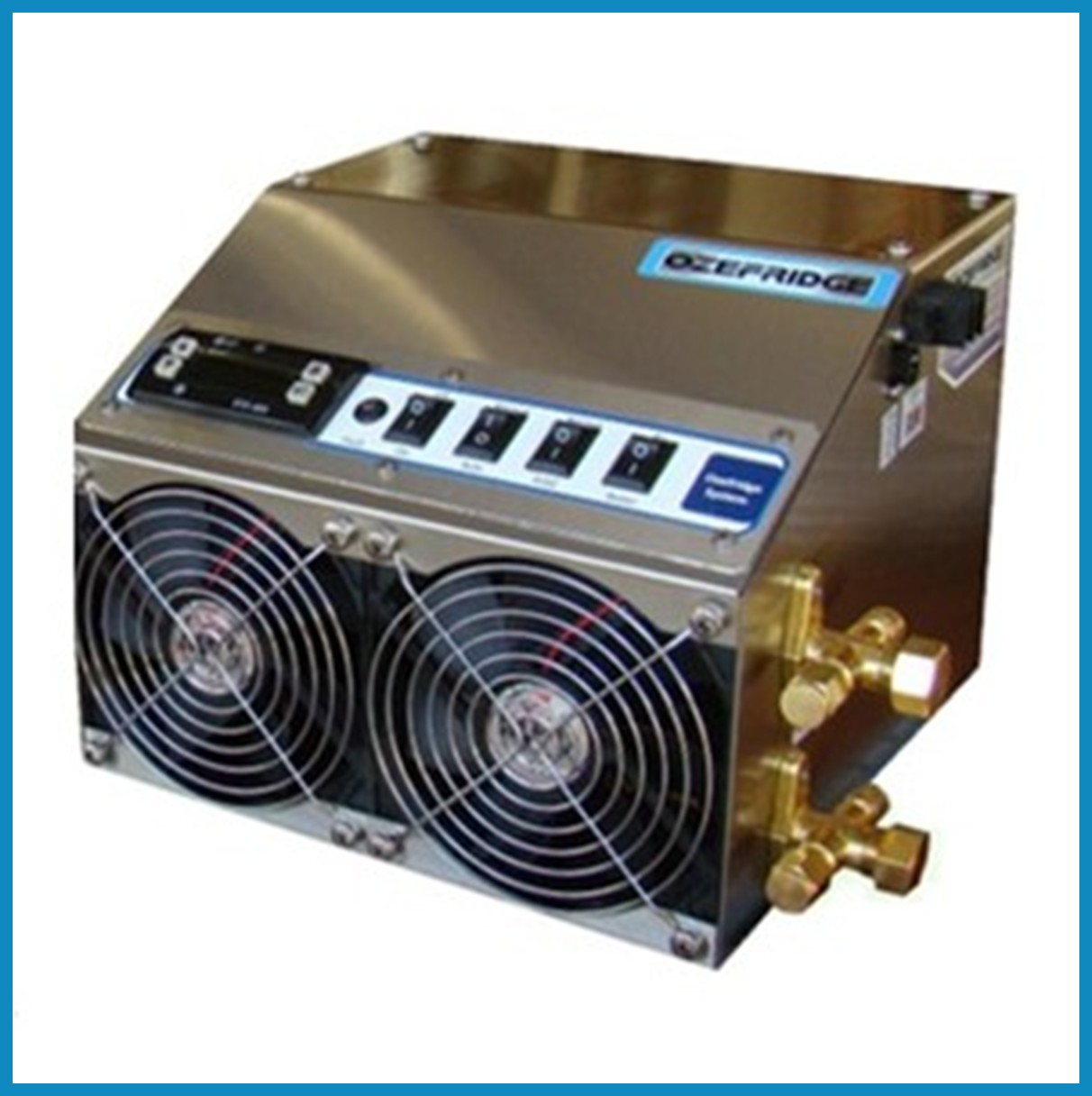

Brushless 12v DC refrigeration condensing unit with a powerful 3.5cc variable speed compressor protected by an intelligent BE90 soft start Motor Driver Module (MDM) against a whole range of common faults including low/high voltage, over heating, and overloading. Auto resets after 90 seconds.
Triple pass condenser with Cupro-Nickel ⅜” tubing for maximum heat transfer efficiency
Twin fans for cooling: one as primary (on with compressor) and secondary is condenser temperature actuated (activates on demand).
Updated wiring harness employing solar-panel grade circular plugs for easy replacement or extension of parts.
Detachable control panel with a fault light and programmable digital controller for accurate temperature monitoring. It also has dual temperature sensors: one for the eutectic tank and secondary sensor for condenser temperature to track the system’s work load. Splash-proof control panel switches.
Fully housed in 304 Stainless steel to withstand the harshest of environments.
2x easy access 3way valve with Schroeder valve ports for greater serviceability.
Optional upgrade to AW490 unit (Air & Water Cooled). Must be purchased together with A490 units upon order.
A whole range of AC-DC and DC-DC power converters to suit various power supply standards.
Bullet points:
Brushless soft start 3.5CC compressor
Triple-pass condenser
Twin cooling fans
Solar-panel grade internal plugs, easy replacement of parts
Detachable/extendable control panel
Fully housed in 304 stainless steel
2x easy access 3way valve with Schroeder valve service ports
Optional upgrade to AW490 unit (upon order ONLY)
Wide range of AC-DC and DC-DC power converters to suit
